Sitexco: Laser Anilox Cleaning Technologies

The best just got better. Looking for the fastest, safest, and most effective way to deep clean your aniloxes? The Sitexco+ Laser Anilox Cleaning System, based on the award-winning Sitexco System, is here. The Sitexco plus system is the fastest cleaning system in the world. Easily clean any type of ink, coating, varnish, or adhesive chemistry. Our patented cleaning method ensures a perfect clean that is safe on your aniloxes, even after the 200th cleaning cycle.

For Quotes or Additional Information

Contact Us

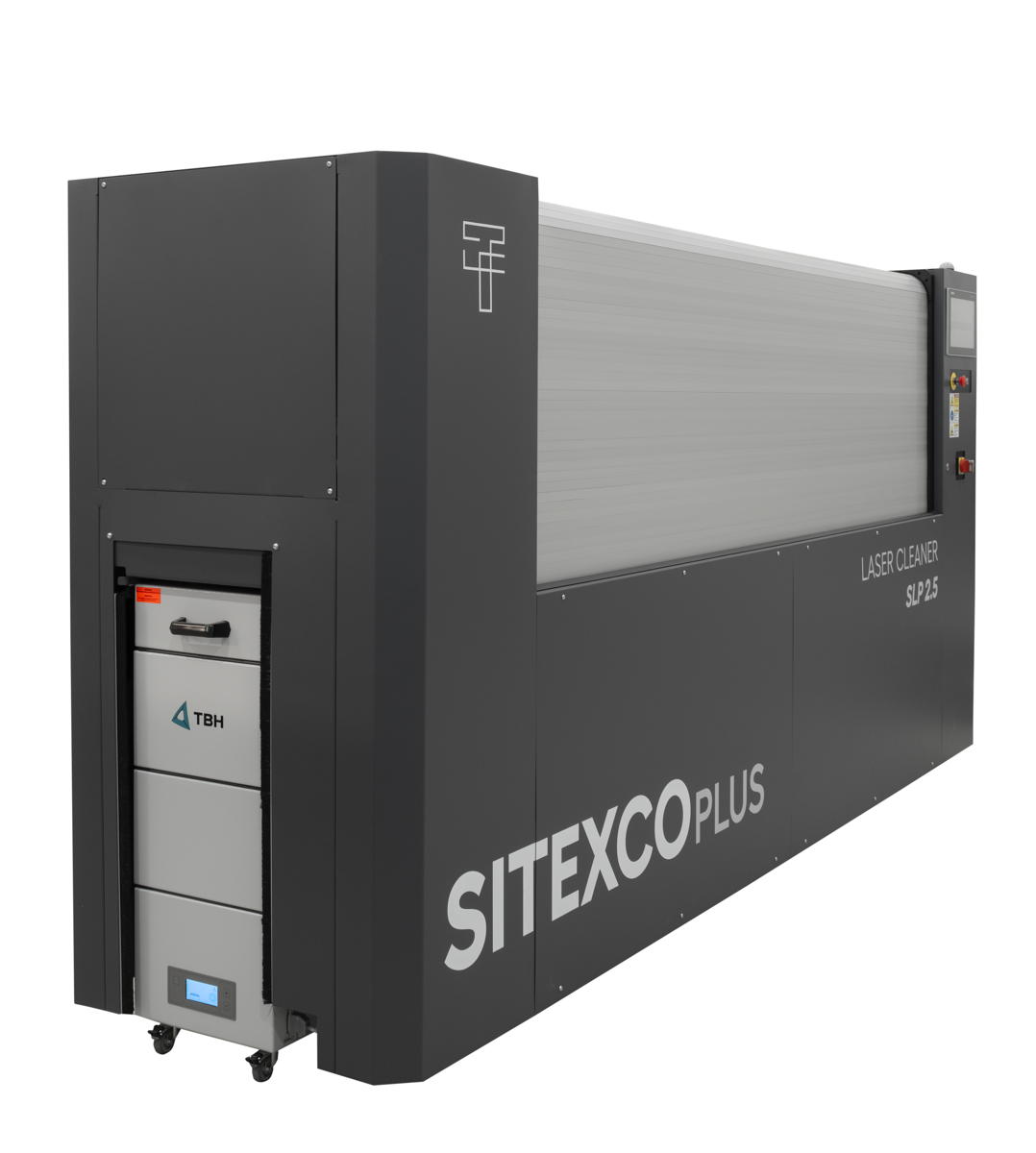

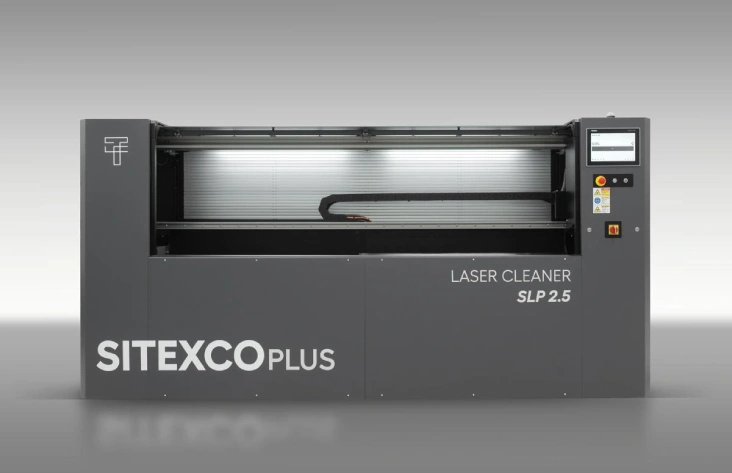

sitexco plus machine

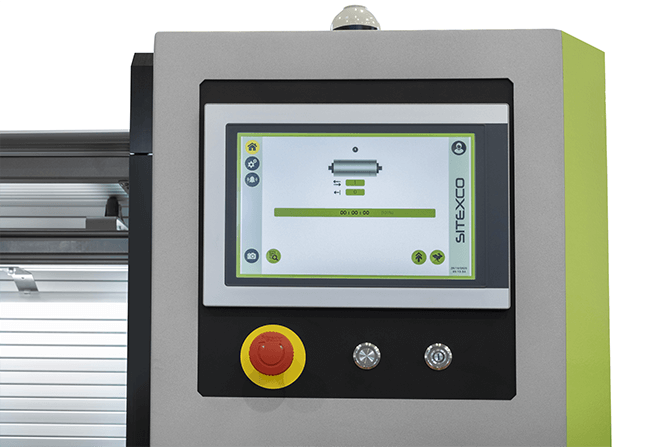

Intelligent and Easy to Operate

  • Simple Touch Screen Interface
  • No Line Screen or Geometry Limitations
  • No Bearing or Gear Removal
  • Does Not Generate Any Waste
  • Does Not Require an Air or Water Source
  • Best Warranty

Fastest and Most Effective Cleaning

  • Proven Technology – 11+ Years of Innovation
  • Longest Lasting Laser
  • Fastest and Safest Laser Cleaning System
  • Safe for Operators and Your Facility
  • Safe for Aniloxes
  • Cleans Any Type of Ink: Water-Based, Energy  Curable (UV/LED), Solvent-Based, Adhesives,  Varnishes, and Coatings
  • Easily Clean: Anilox Rolls, Sleeves, Gravure  Cylinders, Glue Rolls, and Offset Coating Rolls
  • Meets EN 779, ISO 16890, & ASHRAE 52.2 standards

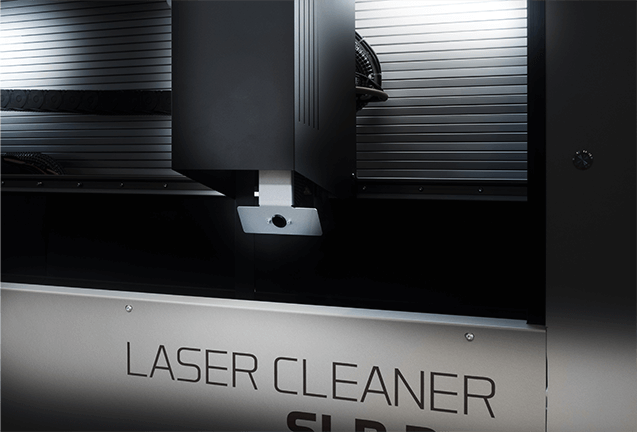

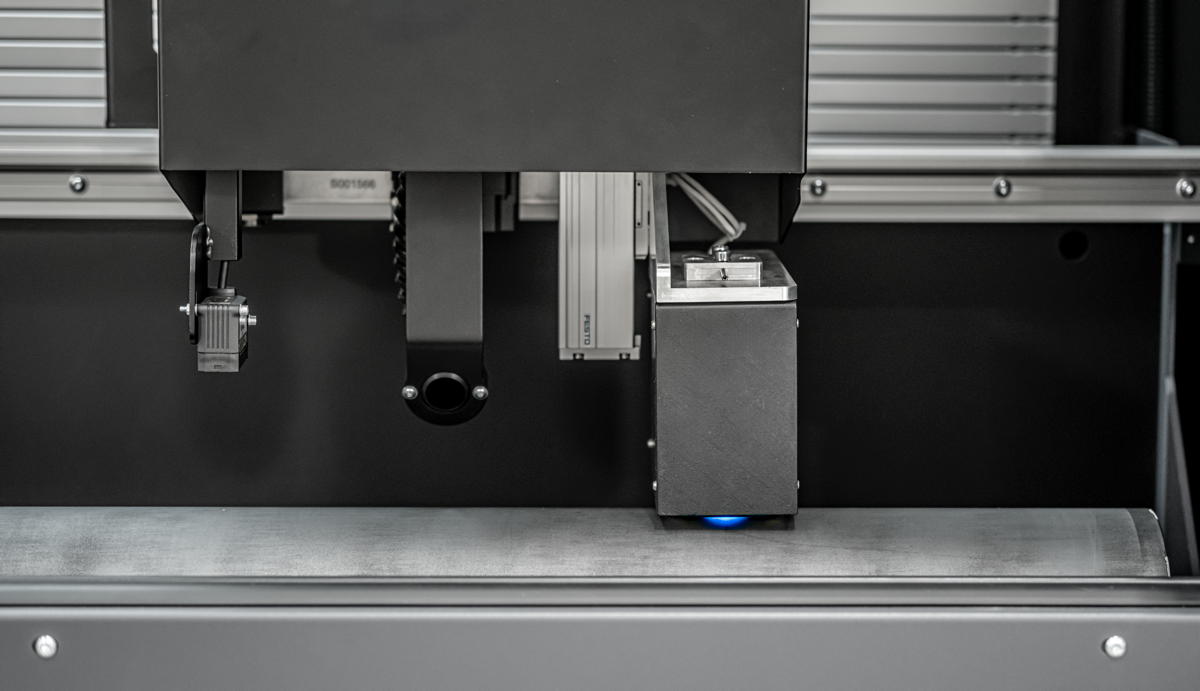

sitexco plus laser cleaner

Cleaning icon

Deep Cleaning

Sitexco+ lasers ablate any ink chemistry with great ease. Whether it's ceramic or chrome, there is not a more effective cleaning method available.

Sustainability icon

Sustainability

Sitexco Plus is the only truly sustainable cylinder cleaning technology on the market. Requires no air or water source and has exceptionally low energy consumption (using only 1.5-1.9 kw of power per hour).

Automated icon

Fully Automated

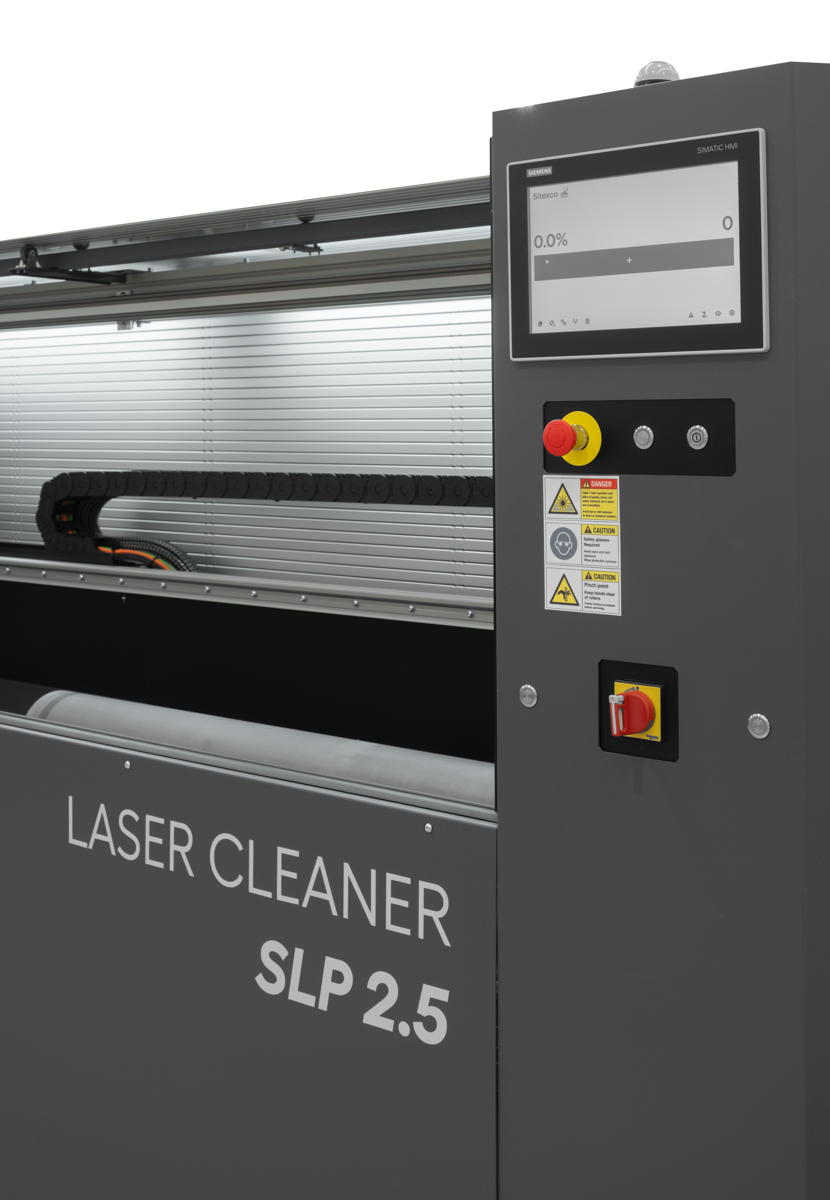

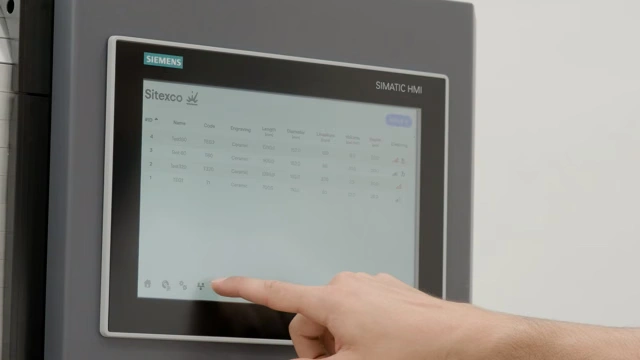

The touch screen interface allows for information to be entered, stored, and easily recalled. Simply place an anilox into the machine, select which cylinder is being cleaned, and turn the machine on.

Safety icon

Safety

Laser Anilox Cleaning can be dangerous if the proper safety precautions are not in place. Safety guards assure that the cleaning machines are shut down immediately if the safety guards are bypassed or if anyone tries to gain access to the machine while it is on.

Te;egram Smartphone icon

"Telegram" Smartphone Feature

The anilox roller cleaning machine operator can seamlessly communicate with the Sitexco+ machine via the telegram feature on a smartphone. Notifications such as end-of-cycle alarm, status updates, and errors can be sent directly to the operator, which allows other work to be done while aniloxes are being cleaned.

Cloud icon

Cloud-Based Features

Setup, manage, and access roll reports from anywhere at any time. Schedule reports to be emailed directly to you on a daily, weekly, or monthly basis. Information is always at your fingertips!

Faster icon

Fastest System Available

The Sitexco+ system is the fastest laser system on the market. Because of our patented cell-by-cell cleaning capabilities, time is not wasted on cleaning already clean cells. Contact us for a LIVE demonstration today!

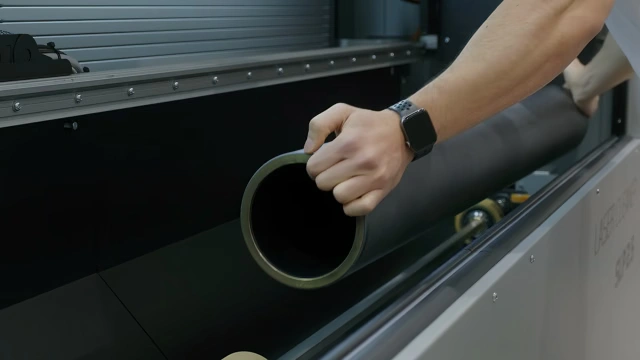

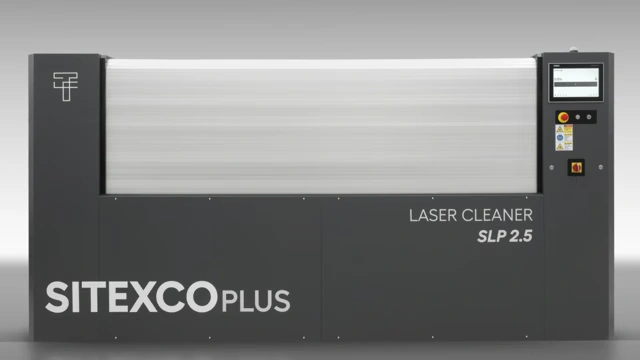

See How Sitexco Plus Works

The Sitexco+ system achieves success by using the highest quality components, proprietary optics, and software. The precise cell-by-cell cleaning method allows each individual cell to be cleaned rather than a large area. As a result, the laser energy is not unnecessarily affecting the engraving (which causes premature wear and inconsistent cleaning results). Precision is the key to proper cleaning results, speed, anilox longevity, and performance. Watch these videos to learn more and read our article on anilox cleaning that goes beyond the basics.

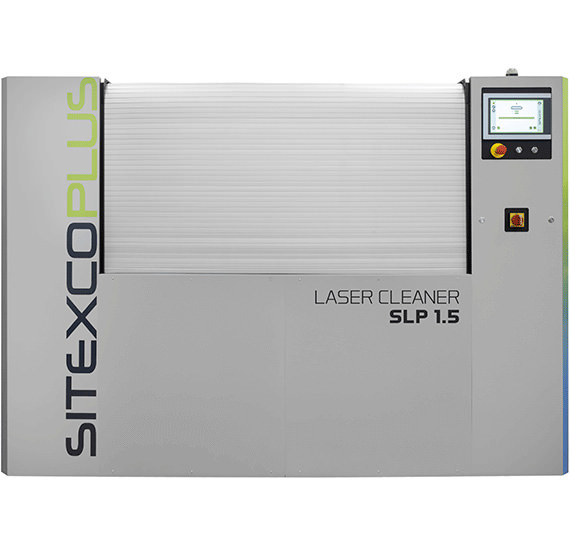

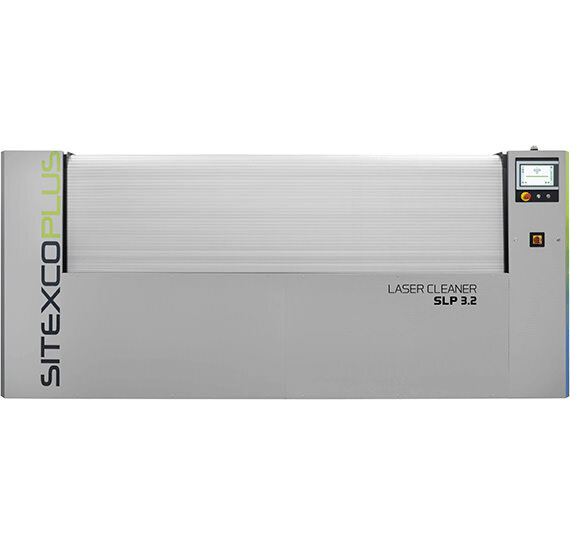

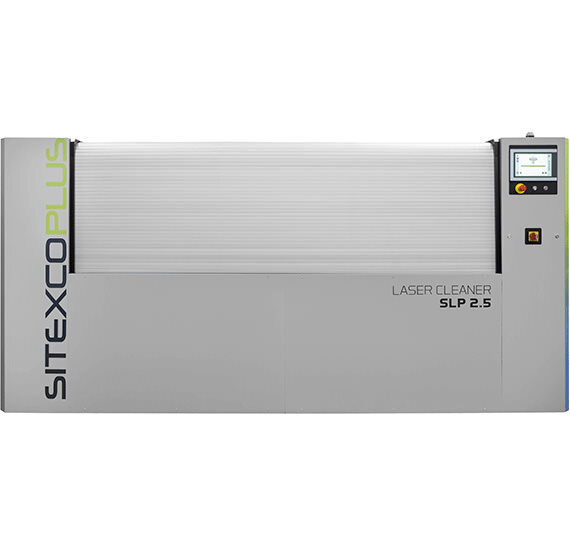

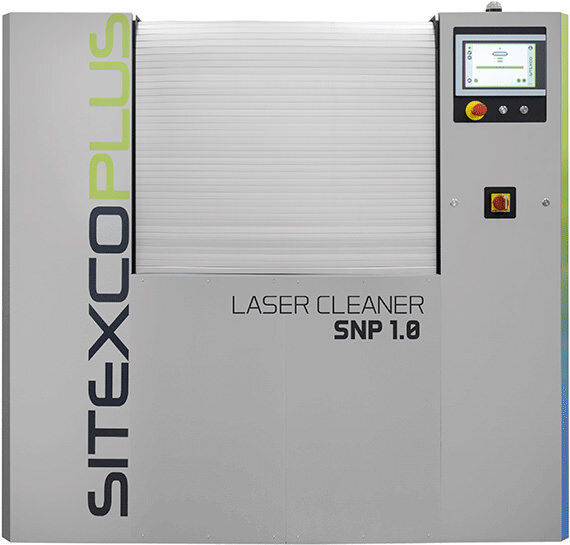

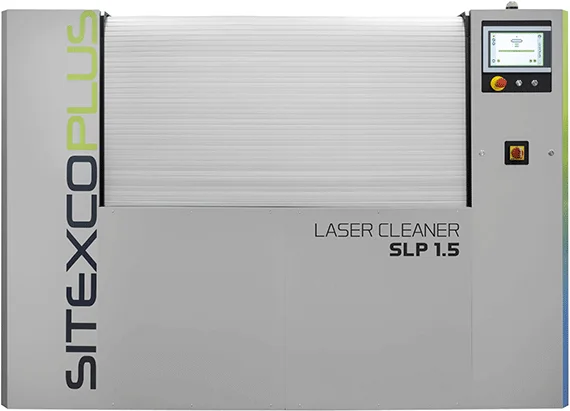

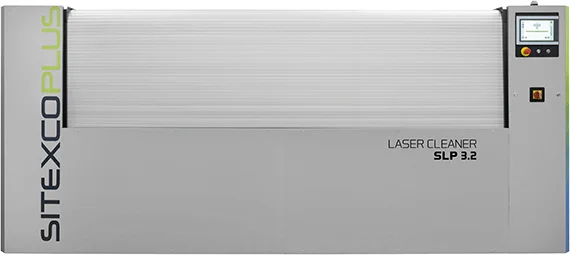

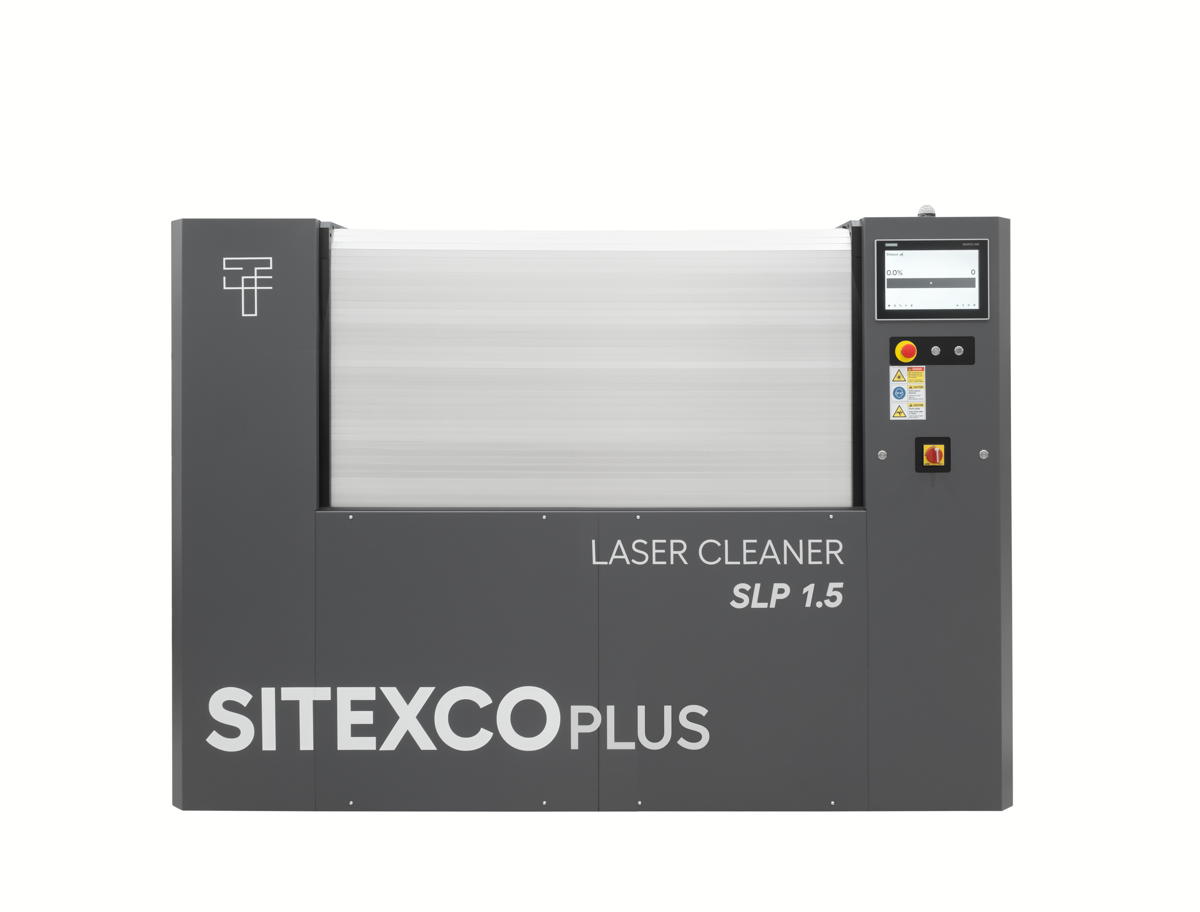

Available Sitexco Plus Models

Maximum Clean Length 33.46”
Maximum Roll Diameter 5.31”
Minimum Roll Diameter 1.77”
Weight Capacity 176 lbs
Power Consumption 1.5 KW
Electrical Supply 208-550v (Single or Dual Phase)
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning No
Laser Options Eco/Advanced

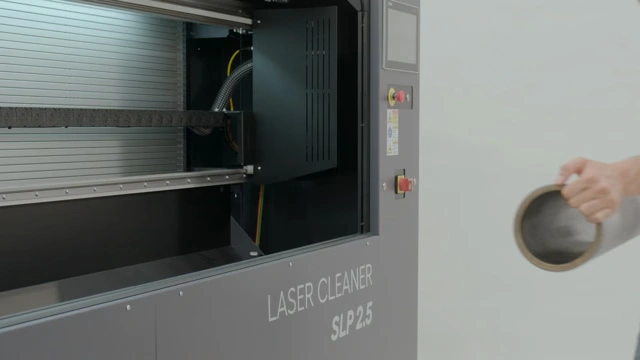

Automatic Doors No
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark
Maximum Clean Length 59”
Maximum Roll Diameter 11.81”
Minimum Roll Diameter 3.15”
Weight Capacity 441 lbs
Power Consumption 1.9 KW
Electrical Supply 208-550v (Single or dual Phase)
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning Up to 2
Laser Options Eco/Advanced/Premium

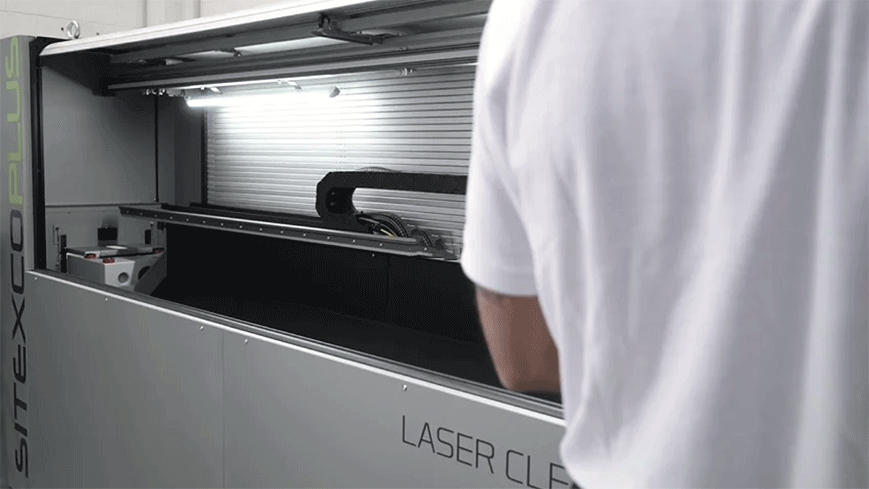

Automatic Doors checkmark
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark
Maximum Clean Length 98.5”
Maximum Roll Diameter 11.81”
Minimum Roll Diameter 3.15”
Weight Capacity 551 lbs
Power Consumption 1.9 KW
Electrical Supply 208-550v (Single or dual Phase)
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning Up to 4
Laser Options Eco/Advanced/Premium
Automatic Doors checkmark
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark
Maximum Clean Length 128”
Maximum Roll Diameter 11.81”
Minimum Roll Diameter 3.15”
Weight Capacity 661 lbs
Power Consumption 1.9 KW
Electrical Supply 208-550v (Single or dual Phase)
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning Up to 4
Laser Options Eco/Advanced/Premium
Automatic Doors checkmark
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark

Now In 3 Available Laser Options

The Sitexco+ machines now come with three laser options to fit your unique cleaning needs. All three lasers provide the same exact cleaning results and capabilities. These options will simply help match your throughput or cleaning frequency demands to meet your budget requirements.

With these three laser options, laser anilox cleaning has become more attainable throughout all market segments of Flexo, Gravure, and Offset printing disciplines.

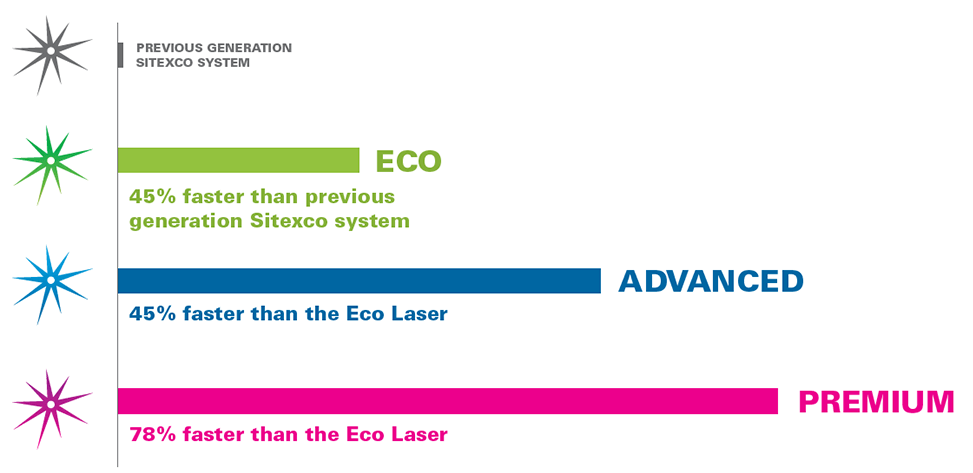

Sitexco+ anilox laser comparison chart
